ROALIGN 47.230
Hydraulic Track Lifting Machine with Slewing Device
ROALIGN 47.230
Hydraulic Track Lifting Machine with Slewing Device
| Engine |
One-cylinder 4-cycle diesel engine HATZ 1D81-C Special sound-insulated design “Silent Pac” |
| Gauge | 56.5″ |
| Performance |
Lifting Capacity: 200 kN Lifting Height: Adjustable to 2.5 ft Slewing Force: 42.5 kN Slewing Range: Adjustable to 10″ |
| Travel Speed |
Travel Transfer: Up to 9.5 mph Working Mode (via Remote Control): Up to 3 mph |
| Dimensions (L x W x H) | 79 x 114 x 67″ |
| Weight | 5,291 lbs |
BENEFITS
High lifting capacity, height, and slewing force
Precise lifting height adjustment via proportional control
Transfer travel up to 9.5 mph; 3 mph in working mode with
radio remote control
Exchangeable rail clamps for different rail types

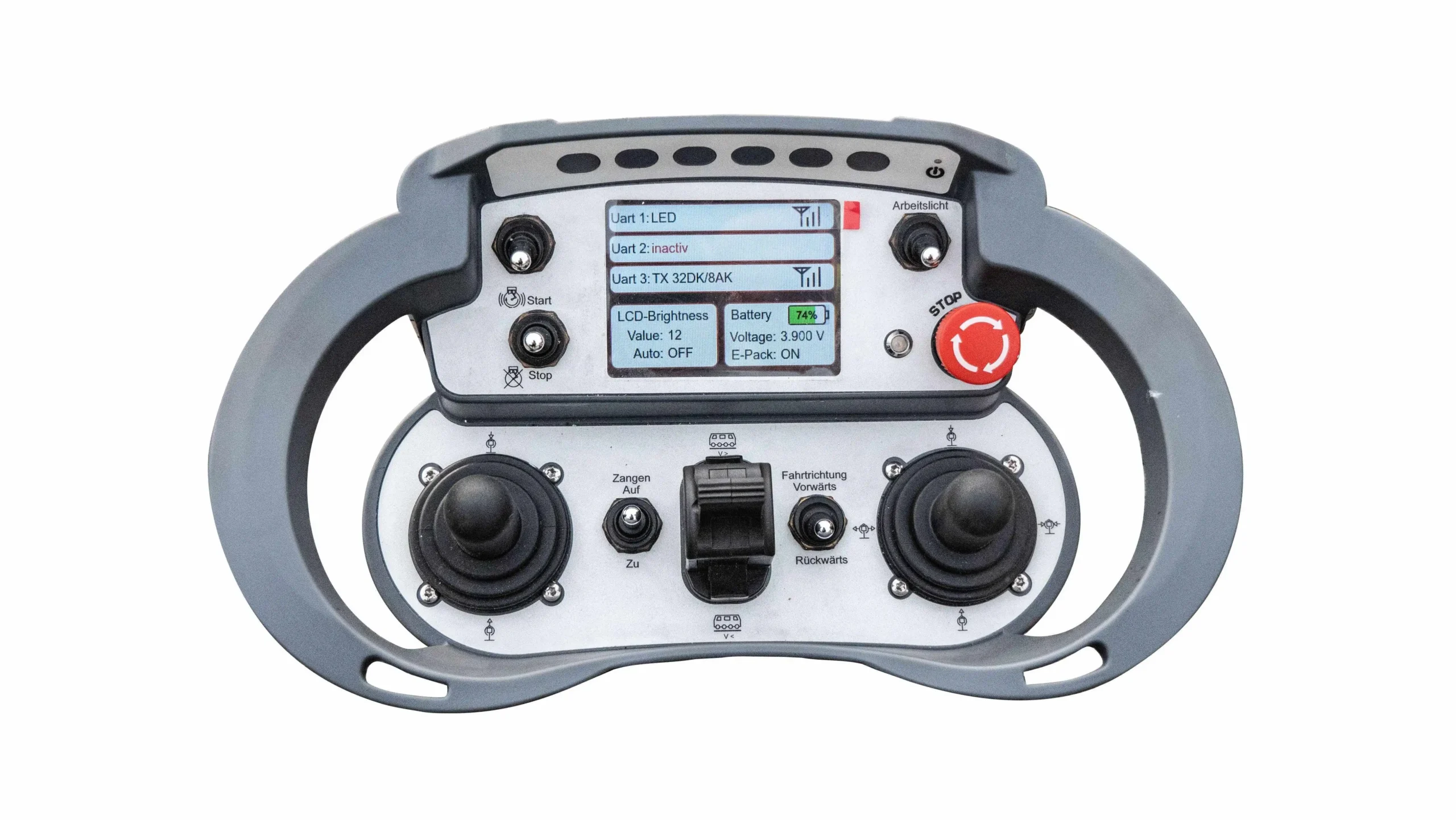

Remote control operates via radio or cable
LED illumination of the entire working area
Audible and visual warning signals
Dead man’s control for transfer and working modes
Optional red/white signal lighting
Cylinder position monitoring with sensors
Emergency operation with hydraulic hand pump;
tow bar available
Built to EN 15955 standards
Exhaust fumes routed downward (track bed)
Suitable for lifting and aligning ballasted
and non-ballasted track panels (during tamping)
Lifts rails for rail pad replacement
Ideal for lifting work in switch areas

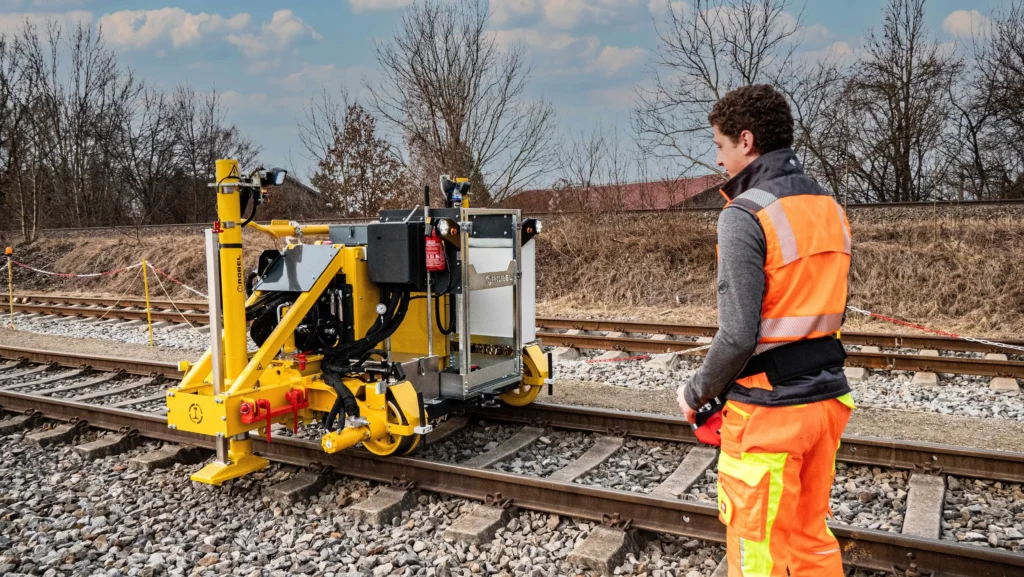

For lifting and lining tracks or entire track panels with radio remote control
