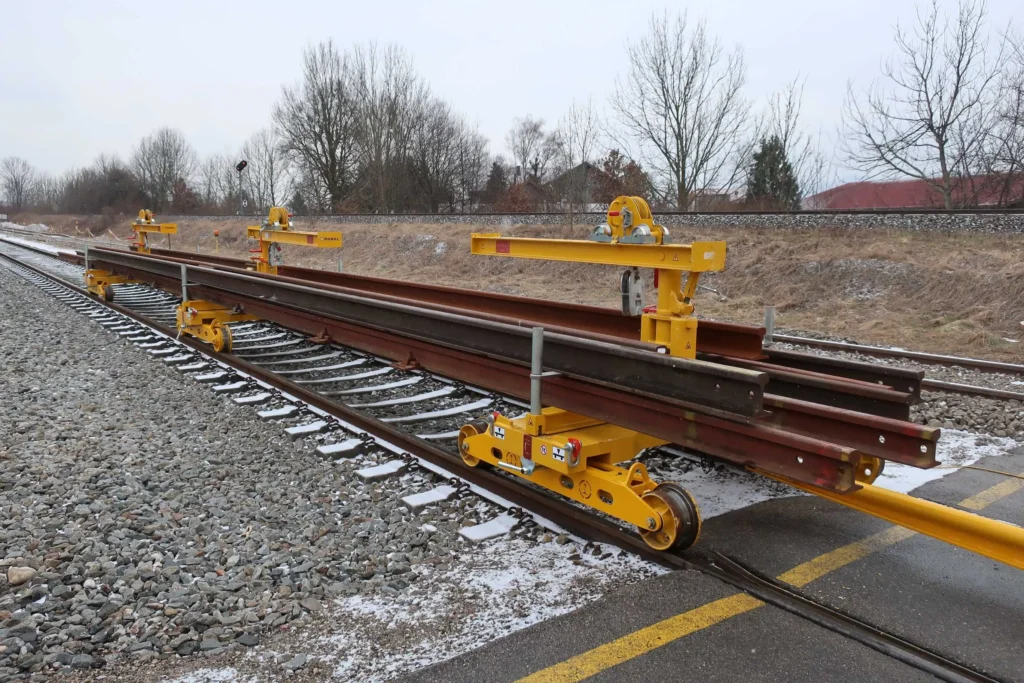

ROLOAD 40.51
Rail Loading and Transporting Unit
ROLOAD 40.51
Rail Loading and Transporting Unit
| Max. Permitted Carrying Capacity | 22,046 lbs |
| Max. Carry Capacity per Traveling Crab / Cable Winch | For loading facility up to 3 ft from track center: up to 2,204.5 lbs For loading facility up to 4.5 ft from track center: up to 1,102.5 lbs |
| Max. Vertical Travel of Cable Winch | 3.5 ft |
| Wheel Base | 3.5 ft |
| Running Wheel Diameter | 1 ft |
| Max. Permitted Speed | 12.5 mph |
| Max. Loaded Capacities | 12 rails up to max. 45.5 lb/ft on two levels |
| Max. Rail Lengths | 2 rail loading/transporting units: Max 46 ft long 3 rail loading/transporting units: Max 65.5 ft long 4 rail loading/transporting units: Max 85 ft long |
| Dimensions (L x W x H) | Working Position: 76 x 99 x 58″ Transport Position: 102.5 x 69 x 58″ |
| Weight | 3,527.5 lbs |
| Gauge | 56.5″ *Different track gauges are available upon request. |
BENEFITS
Transport rails by combining up to four units with draw bars
Navigates curve radii up to 164 ft
Maximum parking gradient with brake: 8%
POWERFUL MACHINES
Parking brake engages all four wheels
Pivot plate with push-fit uprights, swivels approx. +/- 16°
Compatible with trailer couplings and connecting rods on both sides
Safe transport on four-wheeled chassis with rail loader and trolley.
