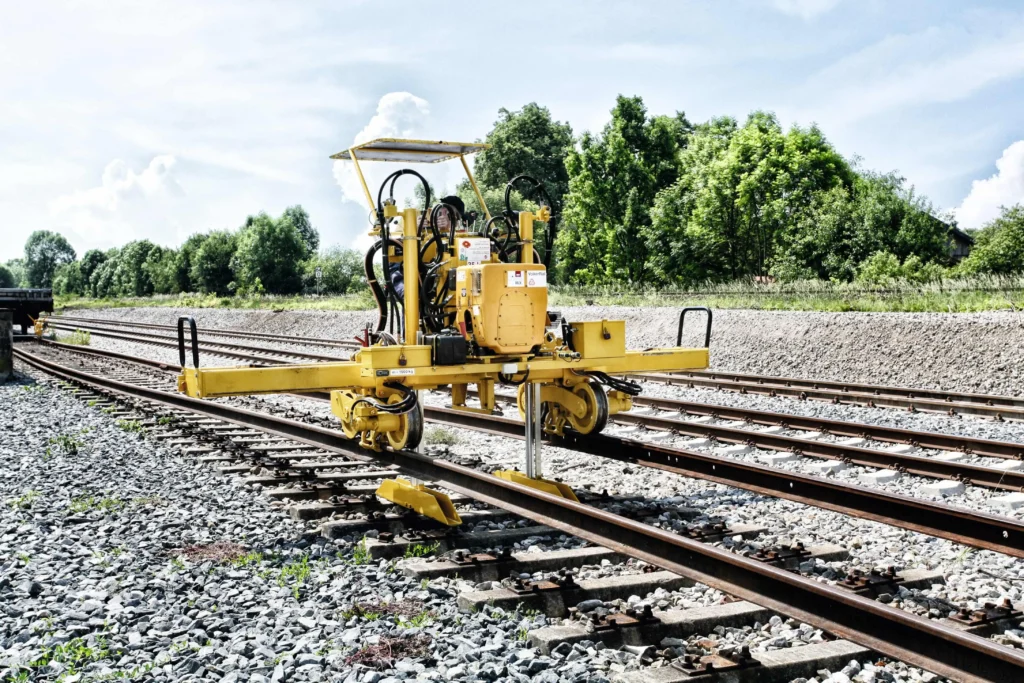

ROTHREAD 43.32
Rail Threader
SPECIFICATIONS
Drive
Air-cooled 4-cycle diesel engine
Type
HATZ 1 D81 “Silent Pac”, specifically soundproofed design
Output
7.2 kW
Max.Lifting Capacity
13,228 lbs
Hydraulic System Operating Pressure
50/160 bar
Max. Vertical Travel
2.5 ft
Outward Expansion Force
30 kN
Inward Expansion Force
15 kN
Track Gauge
2.5 – 11.5 ft
Wheel Base
2.5 ft
Wheel Diameter Double Wheel Flanges
1 ft
Max. Traveling Speed
8 mph
Gradient
25%
Dimensions L x W x H
68.5 x 157.5 x 79.5″
Weight
3,527.5 lbs
BENEFITS
High-performance rail mover
Roof for weather protection
LED working light
Slewing capability
Automatic track gauge adjustment during travel
Auxiliary rubber wheels for turning and navigating level crossings
Self-propelled or towable
For continuous gradual repositioning of rails to the desired track gauge
