RODRILL 10.20 E3

Battery Rail Drill

RoDrill 10.20 E3
Battery Rail Drill

Run Time
Battery 400Wh
35+ 1-1/8″ Complete Holes

Battery 800Wh
80+ 1-1/8″ Complete Holes

Weight
36 lbs

Dimensions
(L x W x H) 23 x 9 x 15”

Download Now

BENEFITS

Drilling time 10-30 seconds; Drilling range up to 2-½ inches
Quick lock chuck for twister bits
LED display for optimal drilling performance

Powerful machines.

Adjustable operating handle
Operating button on handle for safe operation
For drilling of running rail, third rail/conductor rail, crane rail, and grinder rail/groove rail

Easy, efficient and emission-free drilling

RoDrill 10.20 E3 Accessories

Running Rail Templates | Flip Flop Design*
R_ES_00033 115lb/119lb RE 132lb/136lb RE
R_ES_00034 141lb AB 132lb/136lb RE
R_ES_00035 115lb/119lb RE 100lb ARA-B
R_ES_00036 140lb RE / 133lb RE
R_ES_00037 90lb ARA-A / 100lb ARA-A
R_ES_00038 90lb ASCE / 100lb ASCE
R_ES_00039 105lb DY / 127lb DYM
R_ES_00041 100lb DY + 110lb RE / 100lb RE
R_ES_00042 100lb PS / 130lb PS
R_ES_00043 130lb RE / 131lb RE
R_ES_00046 133lb RE / 132/136lb RE
R_ES_00063 S49/S54 / UIC60
R_ES_00064 140lb RE / 141lb RE

Crane Rail Templates*
R_ES_00040 80lb ASCE / 85lb ASCE
R_ES_00055 30lb ASCE
R_ES_00056 60lb ASCE
R_ES_00057 105lb ASCE
R_ES_00058 135lb ASCE
R_ES_00059 175lb ASCE
R_ES_00061 CR73
Third Rail Templates*
R-MPAF 84C-F Comp Template – 84C-F Contact Rail Shoe – Aluminum Comp. 3rd Rail
R-MPAF 85C-P Comp Template – 85C Contact Rail Shoe – Aluminum Comp. 3rd Rail
R-MPAF-150RE 150lb Contact Rail Shoe – Solid Third Rail
Grooved Rail Templates*
R_ES_00062 Rail Drill Shoe 62R1 (NP4aM) – Grooved Rail*Additional sizes and applications are available upon request
Rail Drill Clamps
7814104004 R-DBG-GR Over Rail Clamp (Running Rail + Guard Rail Compatible) – 10.20 + 10.40
9801040089 R-DBG-LY Over Rail Long Arm Curved Clamp (Girder Rail Applications) – 10.20 + 10.40
7814104005 R-DBG-AY Over Rail Long Arm Clamp (3rd Rail + Crane Rail Applications) – 10.20 + 10.40
R-DBG-GR-W Guard Rail Wheels – R-DBG-GR – 10.20 + 10.40
3rd Rail + Strap Guard Drilling
Two-Stage Drilling Device
7818930003 RTST50 3rd Rail + Strap Guard Two-Stage Drilling Accessory
Signaling and Wheel Sensor Drilling
Gold Spiral Bits
N-PRE1-2 1/2″ Gold Spiral Drill Bit (13mm) (Required Adapter R-AD1-2)
N-RPE-1-2L 1/2″ Long Gold Spiral Drill Bit (13mm) (Required Adapter R-AD1-2)
N-RPE95C 3/8″ Gold Spiral Drill Bit (Required Adapter R-AD3-8)
Gold Spiral Bit Adapters
R-AD1-2 Twist Drill Adapter – N-RPE1-2 & N-RPE1-2L
R-AD3-8 Twist Drill Adapter – N-RPE95C
Aluminum Composite Drilling
Composite Spiral Bit
R-PE1L1-AR 1″ Aluminum Composite 3rd Rail Drill Bit – Including Fluid Holes and Fluid Pin (DPE)
R-PE7/8L1-AR 7/8″ Aluminum Composite 3rd Rail Drill Bit – Including Fluid Holes and Fluid Pin (DPE)
Composite Spiral Bit Accessories
R-DPE Fluid Spacer – R-PE11L-A

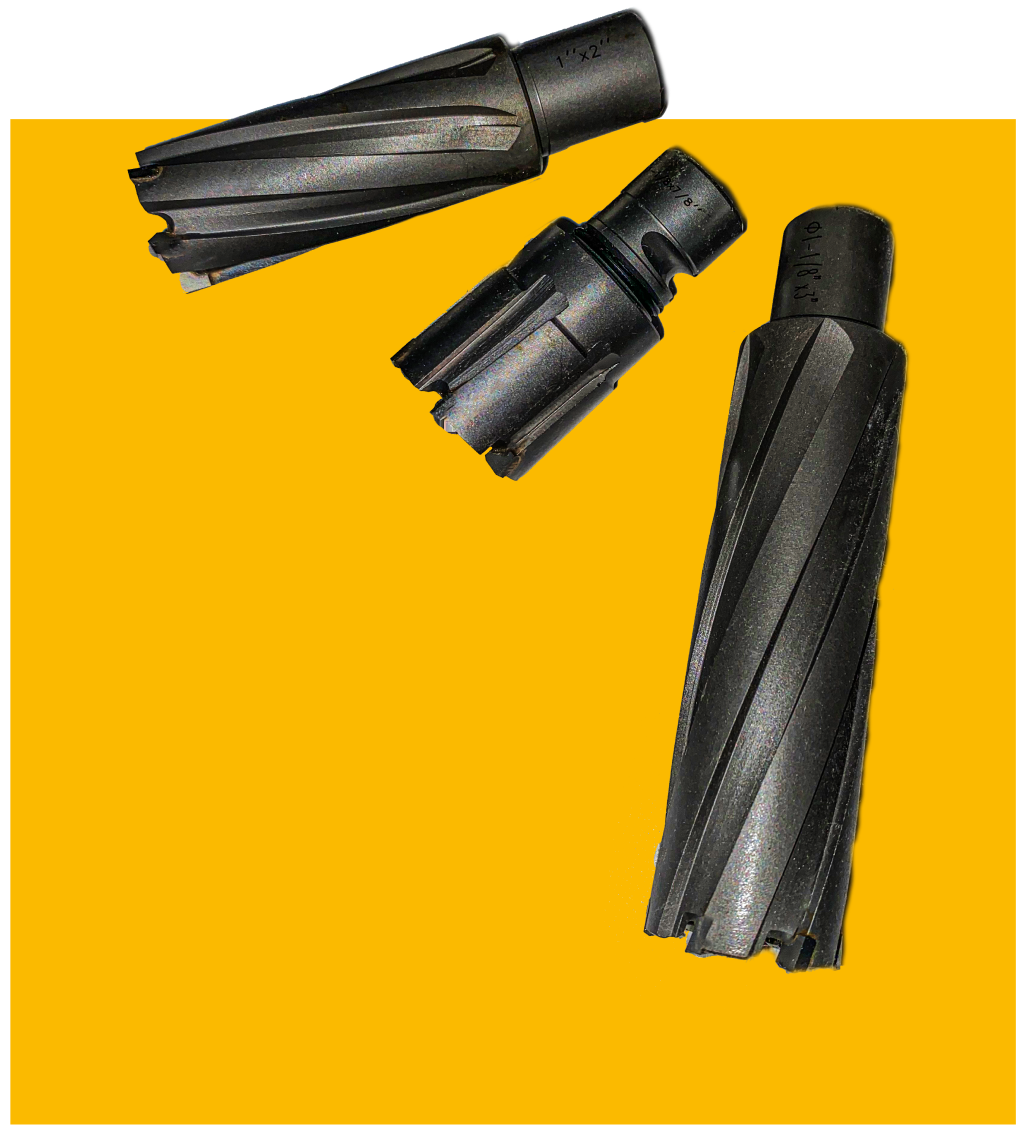

Carbide Cutters – 7/8″ Depth Cut – Twister*
R-CCQ3/4-7/8 ROBEL Carbide Cutter 3/4″ x 7/8″
R-CCQ7/8-7/8 ROBEL Carbide Cutter 7/8″ x 7/8″
R-CCQ1-7/8 ROBEL Carbide Cutter 1″ x 7/8″
R-CCQ1-1/16-7/8 ROBEL Carbide Cutter 1-1/16″ x 7/8″
R-CCQ1-1/8-7/8 ROBEL Carbide Cutter 1-1/8″ x 7/8″
R-CCQ1-3/16-7/8 ROBEL Carbide Cutter 1-3/16″ x 7/8″
R-CCQ1-1/4-7/8 ROBEL Carbide Cutter 1-1/4″ x 7/8″
R-CCQ1-3/8-7/8 ROBEL Carbide Cutter 1-3/8″ x 7/8″
R-CCQ1-5/16-7/8 ROBEL Carbide Cutter 1-5/16″ x 7/8″
R-CCQ1-7/16-7/8 ROBEL Carbide Cutter 1-7/16″ x 7/8″
R-CCQ1-1/2-7/8 ROBEL Carbide Cutter 1-1/2″ x 7/8″
R-CCQ2-7/8 ROBEL Carbide Cutter 2″ x 7/8″
RPP7-8 Pilot Pin – 7/8″ Depth CCQ
Carbide Cutters – 2″ Depth Cut – Twister | Crane and Guard Rail Length*
R-CCQ3/4-2 ROBEL Carbide Cutter 3/4″ x 2″
R-CCQ1-2 ROBEL Carbide Cutter 1″ x 2″
R-CCQ1-1/8-2 ROBEL Carbide Cutter 1-1/8″ x 2″
R-CCQ1-3/16-2 ROBEL Carbide Cutter 1-3/16″ x 2″
R-CCQ1-1/4-2 ROBEL Carbide Cutter 1-1/4″ x 2″
R-CCQ1-1/2-2 ROBEL Carbide Cutter 1-1/2″ x 2″
RPP2 Pilot Pin – 2″ Depth CCQ
Carbide Cutters – 2″ Depth Cut – Weldon Shank (Non-Twist)*
R-CCQ9/16-2-NT ROBEL Carbide Cutter 9/16″ x 2″
R-CCQ3/4-2-NT ROBEL Carbide Cutter 3/4″ x 2″
R-CCQ7/8-2-NT ROBEL Carbide Cutter 7/8″ x 2″
R-CCQ1-1/16-2-NT ROBEL Carbide Cutter 1-1/16″ x 2″
R-CCQ1-1/8-2-NT ROBEL Carbide Cutter 1-1/8″ x 2″
R-CCQ1-3/16-2-NT ROBEL Carbide Cutter 1-3/16″ x 2″
R-CCQ1-1/4-2-NT ROBEL Carbide Cutter 1-1/4″ x 2″
R-CCQ1-5/16-2-NT ROBEL Carbide Cutter 1-5/16″ x 2″
R-CCQ1-3/8-2-NT ROBEL Carbide Cutter 1-3/8″ x 2″
R-CCQ1-3/4-2-NT ROBEL Carbide Cutter 1-3/4″ x 2″
R-CCQ2-3/4-2-NT ROBEL Carbide Cutter 2-3/4″ x 2″
RPP2 Pilot Pin – 2″ Depth CCQ
Carbide Cutters – 3″ Depth Cut – Weldon Shank (Non-Twist)*
R-CCQ5/8-3 ROBEL Carbide Cutter 5/8″ x 3″
R-CCQ3/4-3 ROBEL Carbide Cutter 3/4″ x 3″
R-CCQ7/8-3 ROBEL Carbide Cutter 7/8″ x 3″
R-CCQ15/16-3 ROBEL Carbide Cutter 15/16″ x 3″
R-CCQ1-3 ROBEL Carbide Cutter 1″ x 3″
R-CCQ1-1/8-3 ROBEL Carbide Cutter 1-1/8″ x 3″
R-CCQ1-1/4-3 ROBEL Carbide Cutter 1-1/4″ x 3″
R-CCQ1-5/16-3 ROBEL Carbide Cutter 1-5/16″ x 3″
R-CCQ1-1/2-3 ROBEL Carbide Cutter 1-1/2″ x 3″
RPP3 Pilot Pin – 3″ Depth CCQ (TST50, 3rd Rail – 150lb)
R-PFA1 Spacing Block Adapter – 150LB-RE 3rd Rail Drilling
Additional Accessories
RL2-1 ROBEL Biodegradable Cutting and Drilling Fluid – 1G Bottle (10 1 Mix Ratio)
9781890120 Rail Drill Aluminum Transport Case – 10.20 + 10.40
8204062002 Universal 3-Hole Drilling Template – 10.20 + 10.40
